Thunderbolt 5 dock with 3x Thunderbolt 5, M.2 SSD slot, 4x 10 Gbps USB-A, 5x 10 Gbps USB-C charging ports, RJ45 10 Gb Ethernet, HDMI and DisplayPort, SD and microSD card slots, 3,5 mm headphone and microphone jacks. 80 Gbps bi-directional data and up to 120 Gbps video stream performance. For Mac, Windows, Chromebook and iPad Pro.
Echo 21 Thunderbolt 5 SuperDock är en kraftfull dockningsstation som förvandlar en enda Thunderbolt 5-anslutning till 21 olika anslutningsmöjligheter. Den erbjuder tre Thunderbolt 5-portar, inbyggd M.2 NVMe SSD-plats för upp till 8 TB lagring, 10 Gigabit Ethernet, nio USB-portar med 10 Gbps hastighet samt HDMI- och DisplayPort-utgångar för högupplösta skärmar. Med upp till 140 W laddning kan den även driva och ladda en bärbar dator via samma kabel. Dockan är kompatibel med Mac, Windows, Chromebook och iPad Pro och är utvecklad för professionella användare som behöver maximal prestanda, snabb lagring och omfattande anslutningsmöjligheter.
_____
The Ultimate Thunderbolt 5 Dock
Universal Thunderbolt 5 Dock with Three Thunderbolt 5 Ports, M.2 SSD Slot, 10Gb Ethernet Port, Two Display Connection Ports, Nine 10 Gbps USB 3 Ports, and More.
How do you improve on the award-winning Echo 20 Thunderbolt 4 SuperDock? You double the bandwidth. You increase the power. You add the most-requested features.

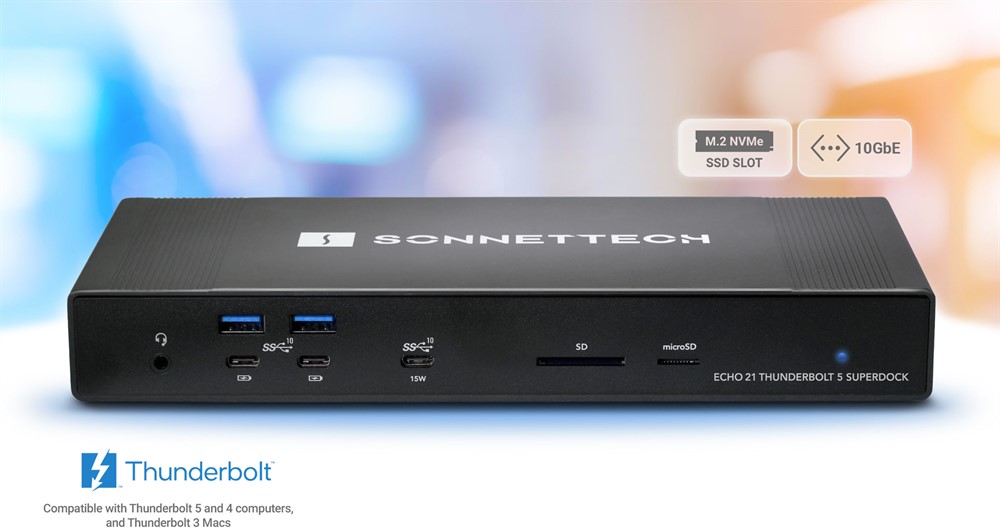

Presenting the Echo 21 Thunderbolt 5 SuperDock — our most powerful and expandable dock ever — featuring superfast SSD internal storage capability and built-in 10GbE networking. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, one NVMe SSD slot, one 10Gb Ethernet port, nine 10 Gbps USB ports, two video output ports, and more! With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and 120 Gbps for higher display bandwidth, you'll revolutionize your productivity.
Connect Your Peripherals and Power Your Laptop with One Thunderbolt 5 Cable
Echo 21 Thunderbolt 5 SuperDock links connected Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? Keep its power adapter in your bag — the SuperDock will power it with 140W of charging power. When it’s time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

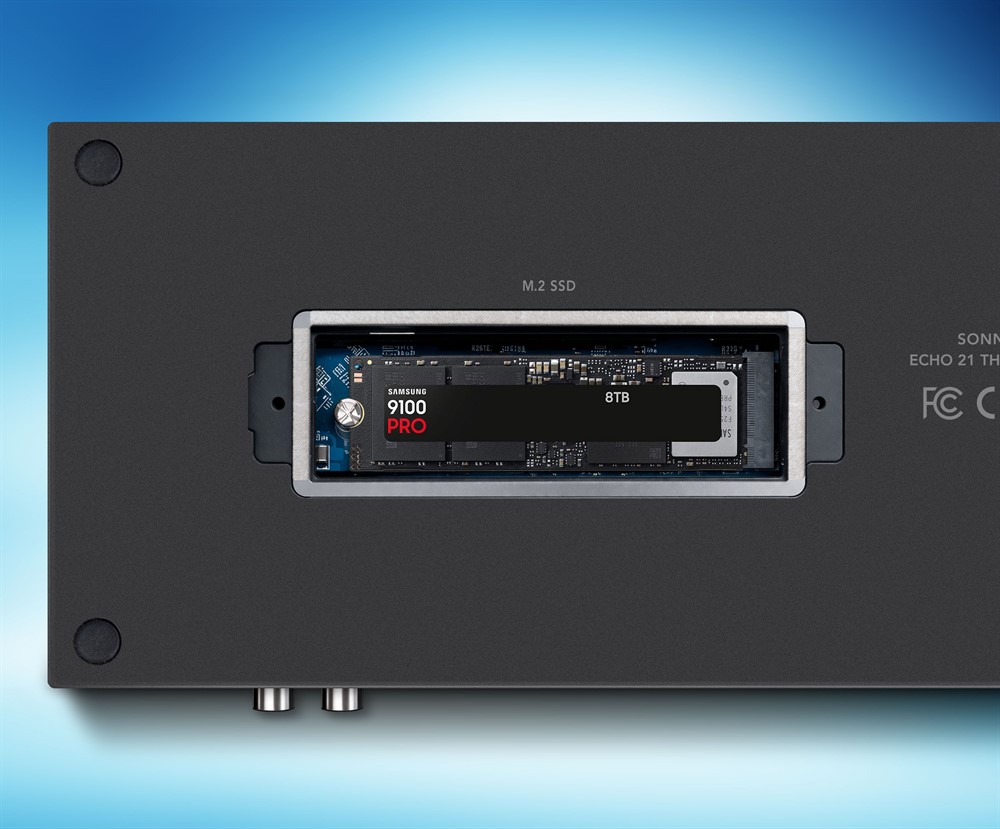

Internal SSD Expansion Slot
Add up to 8TB of high-speed SSD storage (SSD sold separately) directly inside the dock —no external storage device required. Installation is simple: remove the bottom panel, insert the SSD, and secure the cover. Once installed, access and transfer data at up to 3300 MB/s. Ideal for pro content creation, application storage, large media libraries, and Time Machine backups.
Onboard HDMI and DP Display Support
Echo 21 Thunderbolt 5 SuperDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K* @60Hz HDMI monitor or a 4K @144Hz DisplayPort monitor.

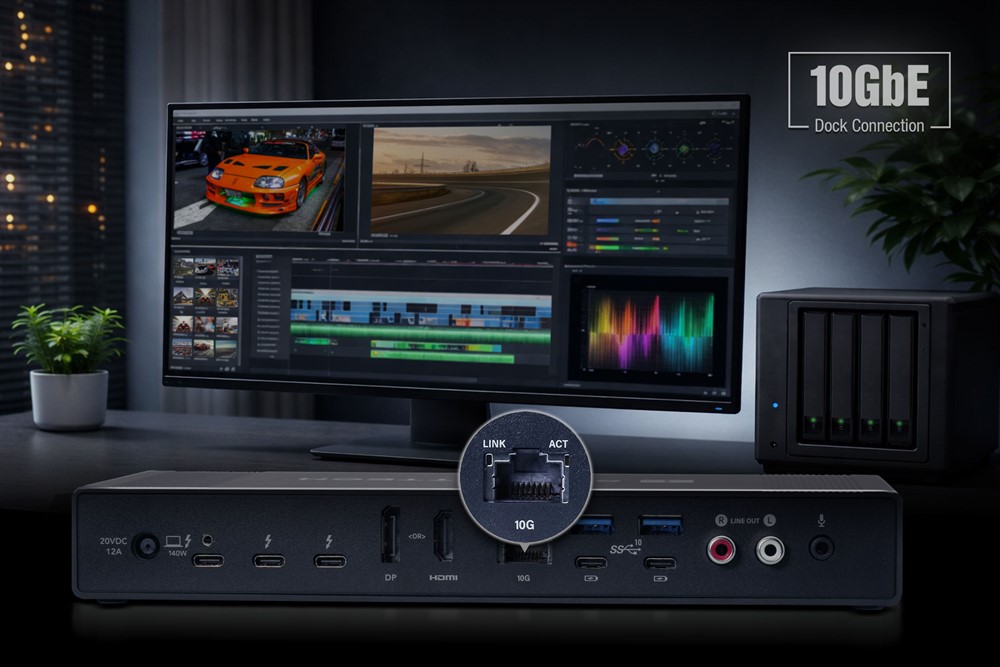

Blazing-fast 10GBASE-T Access
Echo 21 Thunderbolt 5 SuperDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) — eliminating the need for a separate adapter.
Delivering up to 10x the performance of Gigabit Ethernet, the dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support, using standard Cat 5e (or better) cabling.
High Resolution Audio Inputs and Outputs
Echo 21 Thunderbolt 5 SuperDock features a hi-res Audio Codec (coder-decoder) that supports the dock’s audio I/O jacks with high quality, lossless audio.
Dual Downstream Thunderbolt 5 Ports for Comprehensive Connectivity
Echo 21 Thunderbolt 5 SuperDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer — ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices — as well as USB4 and USB 3 peripherals — and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one, two, or even three additional displays.
Powerful 10 Gbps USB-A and USB-C Ports

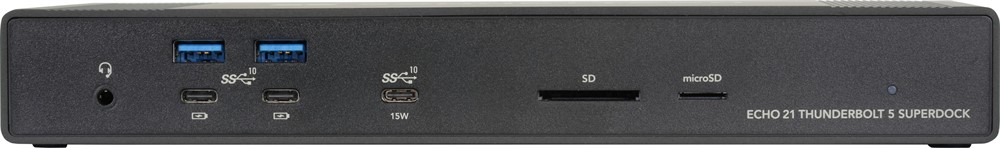

Echo 21 Thunderbolt 5 SuperDock delivers powerful USB 3 connectivity with four 10 Gbps USB-A ports, and five 10 Gbps USB-C charging ports — including two on the front, two on the back, and a front 15W USB-C charging port. All ports support super-fast 10 Gbps USB NVMe SSDs at full speed.
Echo 21 doesn’t skimp on power either — each port provides 7.5W (or 15W) to ensure that drives with higher peak power requirements mount and operate reliably. An added benefit of the USB-C ports is they support device charging even when the computer is off, asleep, or disconnected.
Thunderbolt Certified for Mac, Windows, Chromebook, and iPad Pro
Echo 21 Thunderbolt 5 SuperDock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro.
FEATURES
- One Cable Peripheral Connection
Instant access – plug all your peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.
- 21 Interfaces

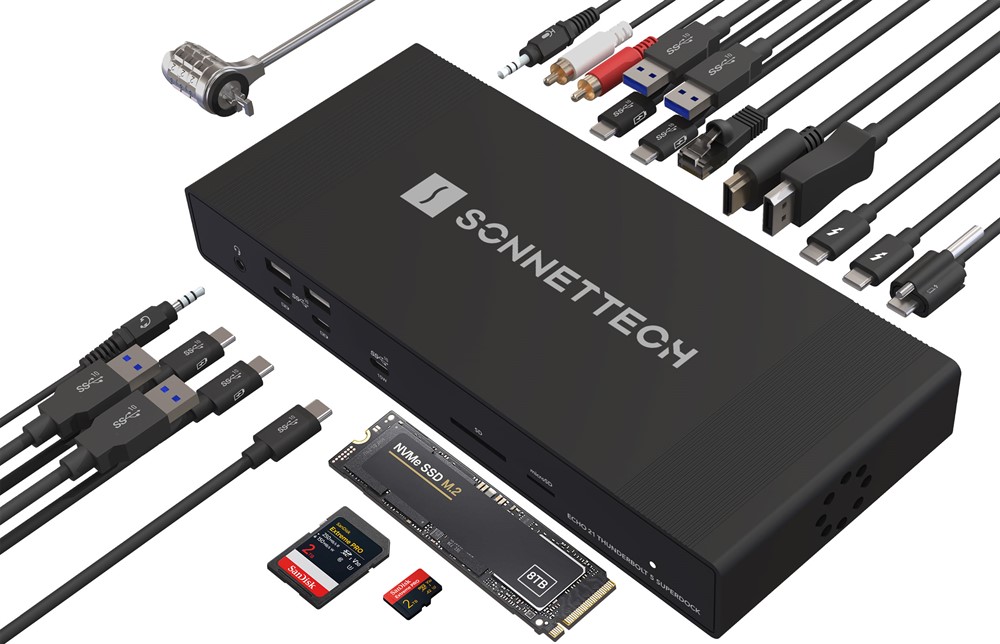

SuperDock includes three Thunderbolt 5; four 10 Gbps USB-A, and five 10 Gbps USB-C charging ports; video output ports for HDMI and DP displays; RJ45 10 Gigabit Ethernet; 3.5 mm combo audio; 3.5 mm microphone; line-level R+L RCA audio out; fast UHS-II SD and microSD card slots; and an M.2 SSD slot.
- Two Thunderbolt 5 Ports for Peripherals
Connect two Thunderbolt peripherals (with support for daisy chaining additional peripherals). Also support USB4 and USB 3 devices, plus displays.
- M.2 NVMe SSD Slot
Add up to 8TB of internal storage (SSD sold separately) with up to 3300 MB/s performance — perfect for content creation, media libraries, and backups.
- 10Gb Ethernet Port
Link to an Ethernet network or NAS at 10 Gigabit speed! Also supports 5Gb, 2.5Gb, and 1Gb Ethernet link speeds.
- 10 Gbps USB-C Port (with 15W Charging)
USB-C port provides 15W of power for operation or charging. Port supports super-fast 10 Gbps USB NVMe SSDs at full speed.
- 10 Gbps USB-C Ports (with 7.5W Charging)
Four USB-C ports provide 7.5W of power each for operation or charging. Ports support 10 Gbps USB NVMe SSDs at full speed.
- 10 Gbps USB-A Ports (7.5W)
Four USB-A ports provide 7.5W of power each and support 10 Gbps USB NVMe SSDs at full speed.
- Video Output (HDMI) Port
Connect a 1080p, 1440p, 4K, 5K, 6K, or 8K HDMI display directly, no adapter required.
- Video Output (DisplayPort) Port
Connect a 1080p, 1440p, or 4K display directly, no adapter required.
- Connect One, Two, or Three Displays via Thunderbolt
Depending on your computer, connect one or two Thunderbolt or USB-C displays directly, and daisy chain a third (see Tech Specs for details). Supports HDMI and DP displays with Thunderbolt-compatible adapters (sold separately).
- Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays, @ up to 500Hz
Depending on your computer, supports up to two 8K displays, or three or four 4K, 5K, or 6K displays
- Charge Your Laptop
Provides 140W through the included Thunderbolt 5 cable to power and charge your laptop.
- Hi-res Audio I/O Support

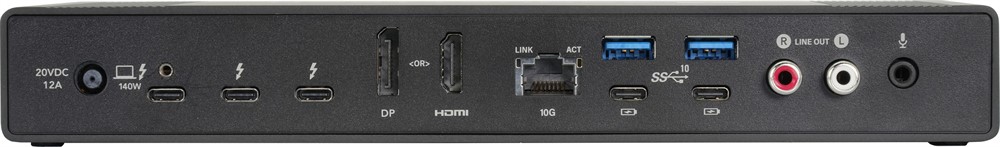

3.5 mm stereo headset jack on the front panel. Separate left/right channel RCA line out jacks that deliver a clean signal to powered speakers or an amplifier, plus a 3.5 mm microphone jack populate the back panel.
- Fast UHS-II SD and microSD Card Slots
Compatible with SD, SDHC, SDXC; and microSD, microSDHC, and microSDXC memory cards; supports 320 MB/s read speeds with UHS-II cards.
- Mac Compatible
Supports all M series Macs, and Intel Macs with Thunderbolt 3 ports.
- Windows Compatible
Supports Windows computers with Thunderbolt 5 or 4, or USB4 ports.
- Chromebook Compatible
Supports Chrombeook computers with Thunderbolt 5 or 4, or USB4 ports.
- Apple M Series iPad Pro Compatible
Supports M series iPad Pro tablets.

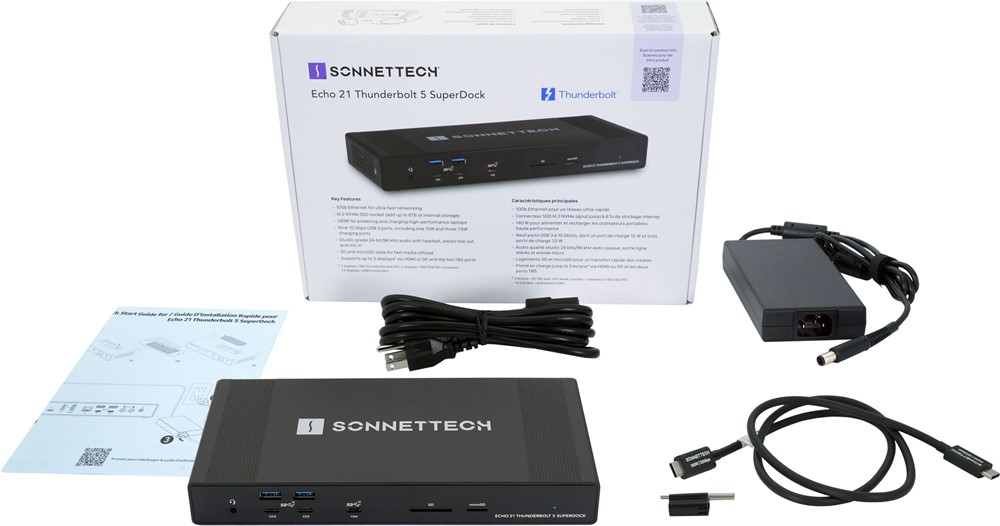

IN THE BOX
- Echo 21 Thunderbolt 5 SuperDock
- Power adapter
- Region-specific power cord
- 0.8-meter Thunderbolt 5 cable
- ThunderLok-A connector lock
- Documentation
