JUDE-MP2
Authentic British console tone for the modern studio. Created in official collaboration with legendary console builder Sound Techniques, the Warm Audio Jude-MP dual channel microphone preamp delivers the exact A-Range preamp circuit used in the original Trident Studios custom consoles. Experience the depth, punch, and iconic character heard on timeless records by The Beatles, David Bowie, Queen, and Elton John.
_____
Tillsammans med Sound Techniques väcker Warm Audio liv i den ikoniska A-Range-förstärkaren från Trident Studios i London. Jude-MP2 ger dig det äkta, analoga konsolljudet med sin oslagbara dynamik och fyllighet – exakt som det lät när ikoner som The Beatles och David Bowie satte sina klassiker på band.
_____
Warm Audio Jude-MP Preamp – The Original Sound Techniques "A-Range" Circuit
The Jude-MP is an official collaboration between Sound Techniques and Warm Audio, bringing the exact microphone preamp circuitry from London's historic Trident Studios "A-Range" consoles to studios worldwide. Designed by original console engineer Geoff Frost and built directly from original schematics, Jude-MP preserves the entire discrete signal path, including the dual-discrete 3035 Class-A amplifier and custom-spec CineMag USA transformers.
Console-Grade Components & Hand-Wired Quality
Sound Techniques specified every detail of the Jude-MP design. The carefully hand-wired PCB layout features audio-grade Wima and Nichicon capacitors, carbon resistors, and bespoke CineMag transformers. Warm Audio meticulously manufactures each unit to meet Sound Techniques’ rigorous console-grade standards, capturing the exact sonic character and musical response that defined an era of recording history.
Z-Match Impedance Tone Control
Derived directly from the original Sound Techniques console, the 9-position Z-Match control recreates Geoff Frost’s unique 8-lead impedance-matching circuit. By optimizing the interaction between your microphone and the preamp, it acts as a 9-way tonal selector, allowing engineers to fine-tune gain, response, and color across any vintage or modern microphone.
5-Year Warranty
Like all Warm Audio gear, every Jude-MP preamp is meticulously hand-tested and inspected by musicians and technicians in Austin, Texas, and comes backed by a 5-year warranty.
Tech Specs
- Dual-Channel, Dual-Discrete Console Microphone Preamp
- Variable Input Gain Based On Z-Match Impedance Setting
- Preamp Gain: 65 - 76dB [40Ω Source Impedance]
- Custom-Wound, 3-Impedance CineMag Input Transformers
- Custom-Wound, High-Purity Nickel CineMag Output Transformers
- Variable Mic Input Impedance: 60Ω | 200Ω | 1.5KΩ
- Nichicon Audio Grade & Wima Capacitors
- EIN -128 dBu (A-wtd)
- Self-Noise : -99 dBu (A-wtd)
- THD : 0.008%
- 48v Phantom Power | Polarity Switch | Line-Level Switch

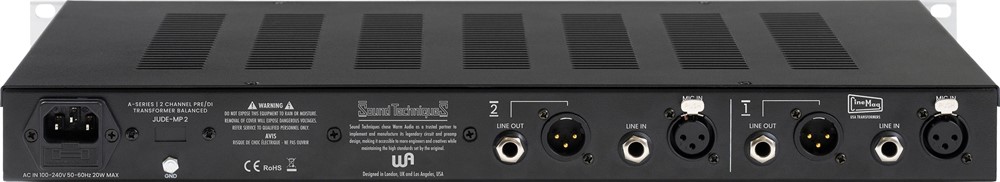

- Inputs: XLR Mic | TS/TRS ¼"
- Outputs: XLR / ¼" TRS Line-Level
- Frequency Response: 10 Hz - 25 kHz (+/-2dB)
- Aluminum Faceplate. Steel Chassis & VU Meter Level Indication
