Powerful active subwoofer. 18" low-frequency driver with a 4" voice coil. 2000W Class D ampflifier. Unique ported design that maximizes efficiency. Easy-to-use Menu and Performance Monitoring LED's. Variable Low Pass Frequency Control.
CDL Sub18 är en kraftfull aktiv subwoofer med ett 18-tums baselement och 4-tums voic cole. Den drivs av en integrerad 2 000 W Class D-förstärkare (1 000 W RMS), och levererar en stark och detaljerad basåtergivning från 36 Hz upp till 144 Hz med en maximal ljudtrycksnivå på 135 dB. Den portade konstruktionen är optimerad för hög effektivitet och koherent basåtergivning. Subwoofern har ett inbyggt system med menystyrda DSP-funktioner inkluderande variabelt lågpassfilter, presets och fasinvertering, samt balanserad XLR-ingång och direkt XLR-utgång. För flexibel användning finns en integrerad M20-polkopp för stackning av CDL-högtalare ovanpå, M10-upphängningspunkter för fly-möjlighet och robust tour-klassad träkabinett med polyurea-yta.
_____

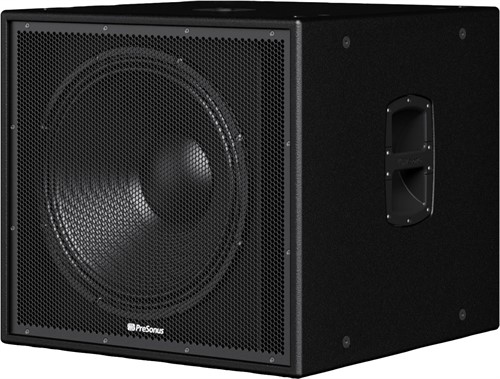

A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus® CDL-series loudspeakers, the CDL Sub18 Active Subwoofer delivers tight, coherent low-end, driven by an integrated 2,000-watt Class D power amp, and features a unique ported design that maximizes efficiency. Its powerful, articulate sub-bass performance and compact design make the CDL Sub18 a great choice for installed and mobile sound.

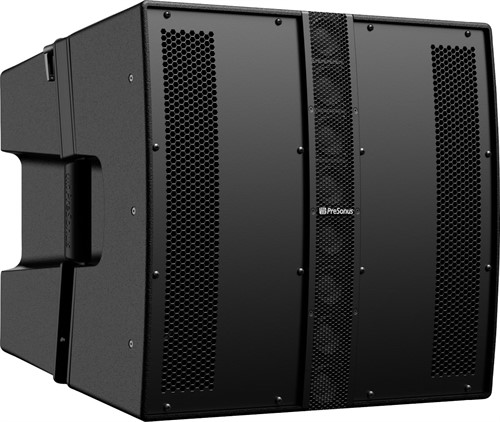

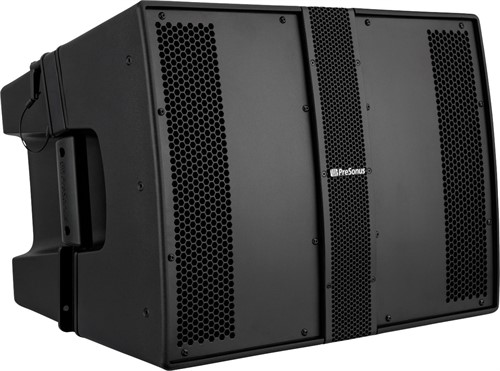

The CDL Sub18 features a 18-inch LF transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown or combined for ground-stacked applications, the CDL Sub18 and CDL12P or CDL10P form a complete system with an even response across the frequency spectrum.

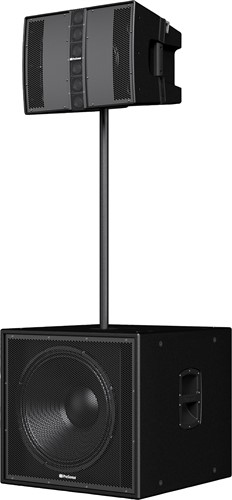

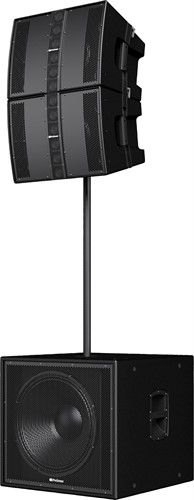

An integrated pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, stack two CDL Sub18 subwoofers together. Integrated M10 fly points make it easy to suspend CDL Sub18 subwoofers, for flexibility in any environment.
For flexibility in various live sound situations, a menu system is provided for adjusting the performance of the subwoofer. This includes, sound enhancing presets, plus a variable low pass filter for adjusting the transition between full range loudspeakers.
FEATURES
- 18-inch low-frequency driver with a 4-inch voice coil
- 2,000W peak (1000W RMS) Class D power amp
- Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
- Unique ported design that maximizes efficiency
- Easy-to-use Menu and Performance Monitoring LED's
- Variable Low Pass Frequency Control
- Integrated M20 threaded pole mount for ground-stacked systems
- Integrated M10 Fly Points for suspending
- Balanced XLR input and balanced XLR direct output
- Locking In and Out powerCon AC connectors
- Rugged, Chemline Polyurea-finished, 15 mm eucalyptus plywood enclosure with tour-grade steel grille
