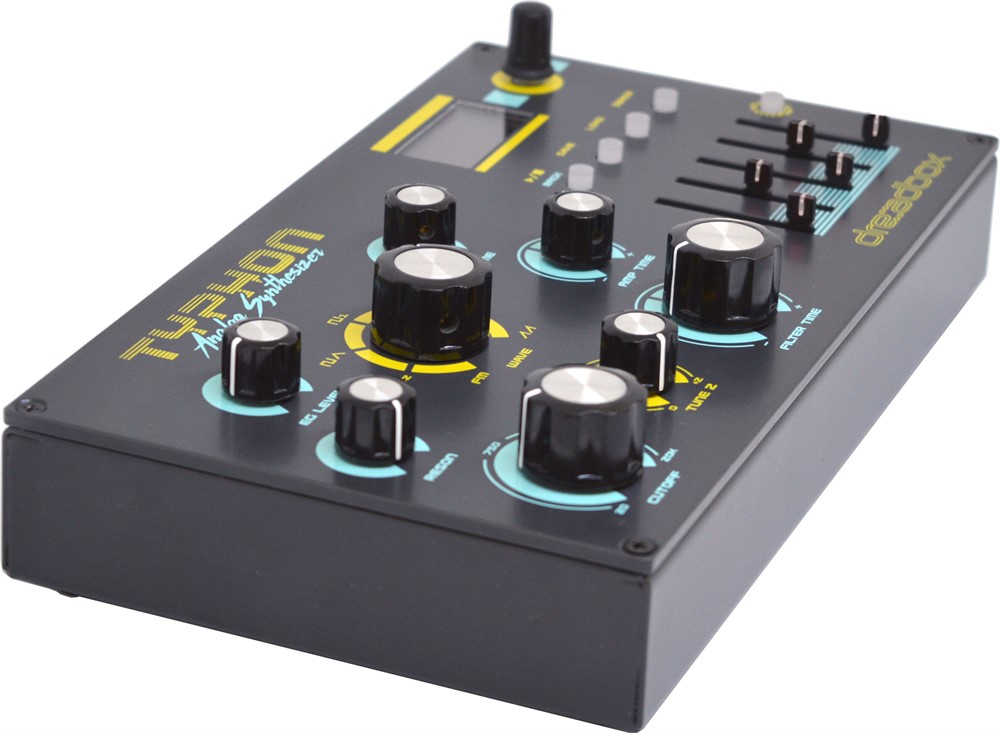

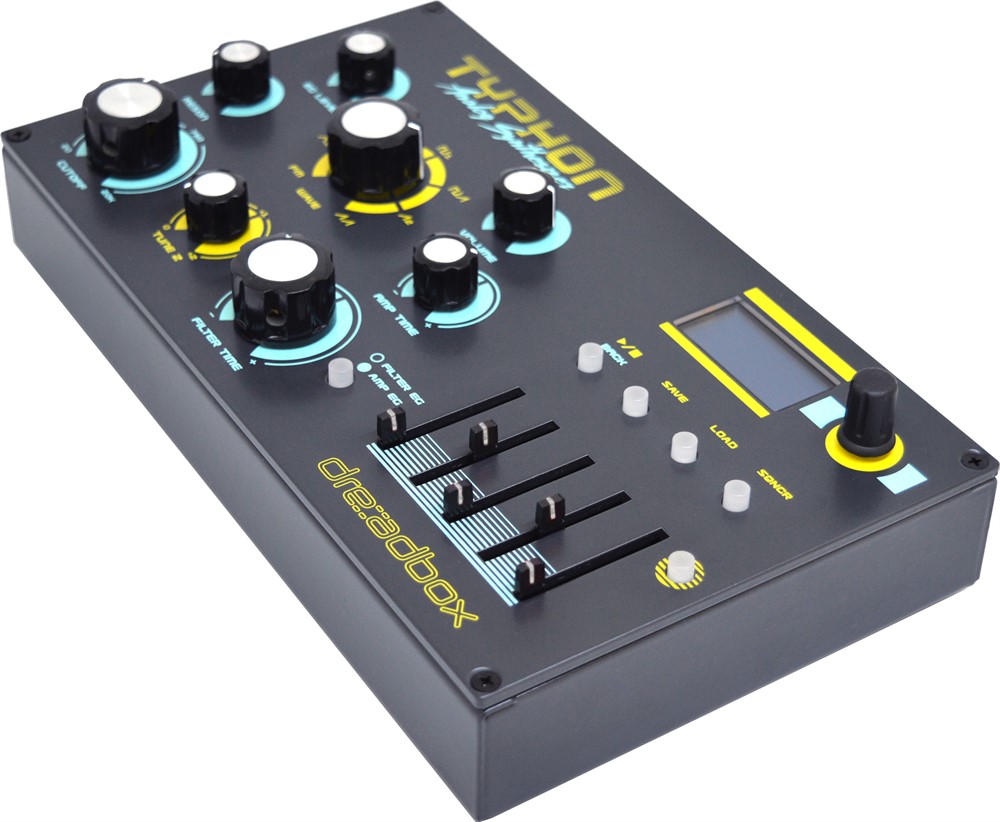

Monophonic analog synthesizer. 2x classic Dreadbox oscillators. 4-pole low pass filter. Multiple Analog VCAs. 2x envelope generators. 3x modulators with 4x different modes. 12x DSP stereo effects developed by Sinevibes. 32-note sequencer. 256 preset memory. External audio input. USB powered.
Typhon är en monofoniska analog synthesizer utrustad med två helt analoga VCO:er, ett fyrpoligt resonanslågpassfilter, två envelope-generatorer, flera analoga VCA:er, 32-stegs sequencer, extern ljudingång och 256 minnesplatser. Sinevibes förstärker Typhon med sin banbrytande DSP-teknik och ljuddesignförmåga, och utrustar den med en expansiv effektsektion som inkluderar sex separata distorsioner, en bitcrusher, två delays, reverb och tre moduleringseffekter.
_____
Features
- Analog Circuit including 2 Classic Dreadbox Oscillators, a 4-pole Low Pass Filter, and Multiple Analog VCAs
- 2 Envelope Generators for the Filter and the Amp
- 3 Modulators with 4 Different Modes (LFO, EG, Random, Parameter Step Sequencer) and Multiple Active Targets

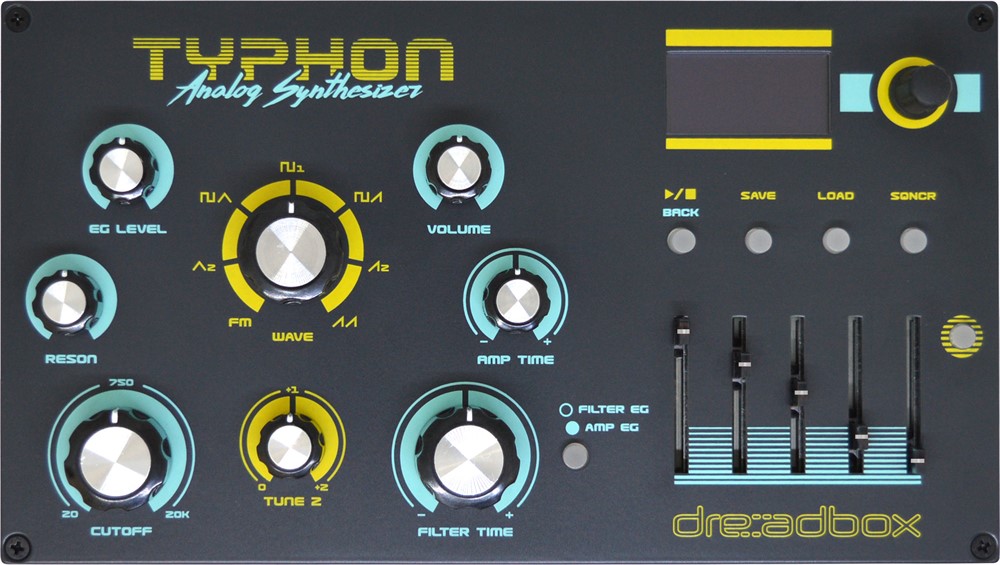

- All analog parts feature a dedicated direct control on the left front panel.
- With the sliders, buttons, and encoder on the right side of the front panel you can control the Amp and the Filter envelopes, the sequencer, the modulators, and the stereo effects, in order to create and save your desired sounds
- 12 DSP stereo effects (32bit @96kHz) developed by Sinevibes, including Distortion, Bit crusher, Chorus, Ensemble,Flanger, Delay and Reverb
- 32 Note Sequencer that can be used to sequence notes in the traditional way or used as a modulation source
- 256 preset memory, with import/export support
- External audio input that can turn this box into the ultimate effects unit
- Portable, Powered via USB. Full MIDI and CC Implementation via MIDI DIN5.
Specifications and connections
- USB powered (at least 500mA)
- 60 Playing hours with 20,000mA portable power bank

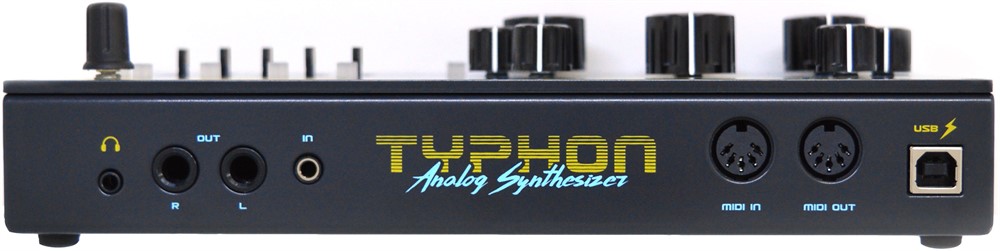

- MIDI Din IN and OUT
- 6,35 mm Jack Stereo Out
- 3,5 mm Mini Jack Headphone Out
- 3,5 mm Mini Jack Mono Audio In (for routing via Typhon FX)
