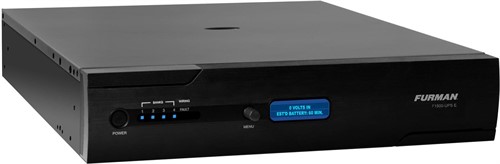

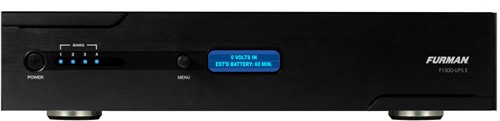

The F1500-UPS E battery backup designed exclusively for audio/video professionals and home theatre aficionados. Uninterruptible power supply - battery backup / power conditioner. 2RU, AVR, RS-232 & USB Interface; BlueBOLT compatible.
_____
UPS nätdel med batteribackup med nätverksmöjligheter.
- 1500VA batteri backup som ger dig möjligheter att i god tid stänga av viktig utrustning vid strömavbrott
- Series Multi-Stage Protection (SMP) Som ger ett underhållsfritt spikskydd
- Linear Filtering Technology (LiFT) Som ger en ojämförlig Audio/Video tydlighet och klarhet
- Extreme Voltage Shutdown (EVS) Skyddar din utrustning mot överspänning
- Dual Learning IR Blasters ger en trygg och säker avstängning av uppkopplad utrustning
- RS-232 Interface ger dig möjlighet att programmera och kontrollera via externa styrsystem
- USB Interface
- Critical Load Management
- AVR spännings regulering ger en konstant utgående spänning
- BlueBOLT® teknologin (med ett TCP/IP kortet Blue Bolt CV-1, som säljs separat) ger dig fjärrkontroll av funtioner som t.ex: Starta om utrustning, slå av och på samt monitorera spänningskvaliteten från var som helst i världen
- Med ett extra batteripack (BATT1500-EXT) kan man förlänga backuptiden upp till fyra gånger
- Racköron medföljer
_____
Protection
Typical UPS systems feature antiquated surge suppression technologies that can cause as much damage and annoying lock-ups as they attempt to prevent. Only Furman offers battery back-up with our road-proven SMP non-sacrificial, zero ground contamination surge suppression technology and EVS Extreme Voltage Shutdown. After all, the most robust battery cannot function if the accompanying circuits are damaged. With Furman's F1500-UPS E, you can expect years of trouble free operation*.
Filtration
While other UPS devices feature AC line filters suitable for an I.T. closet, only Furman employs our exclusive Linear Filtering Technology (LiFT). This advanced noise filtering technology assures that today's ultra-wide dynamic range is maintained as it must be – pristine. Remember, less AC noise equals greater content, greater resolution, and higher definition.
True Sine Wave Output
The F1500-UPS E provides True Sine Wave output when in battery backup mode, ensuring the utmost reliability to all connected equipment while running on battery power.
Expandability
At 1500VA, the F1500-UPS E provides substantial backup time for most critical digital A/V components. If more runtime is needed, a 1500VA battery pack (BATT1500-EXT, sold separately) may be used to further increase runtime (up to four times) as the application demands.
BlueBOLT® Cloud Based IP Control/Monitoring and Serial Programmability & Control
BlueBOLT compatibility (via BlueBOLT-CV1 interface card, sold separately), offers remote control over any Internet connection via a truly plug-and-play, hosted, web-based graphical user interface, with full control and power monitoring functionality. RS-232 control with a wide range of commands to interface with an existing control unit is included. Dual programmable IR control allows the unit to send a shut down command to remote components in the event of a blackout.
Typical Backup Components
Given the nature of battery backup technology, high-current audio and video components such as power amplifiers, powered subwoofers, and high- wattage displays are not recommended for use with the F1500-UPS E. Not only will these components drain battery power quite rapidly, line impedance will be raised due to the F1500-UPS E's (or any) AVR and AC to DC inverter, which can induce current compression and noticeably diminish performance with high-current A/V equipment. The following components are ideal for use with the F1500-UPS E:
- DAWs
- Satellite Receivers
- Cable Boxes
- Digital Video Recorders
- Media Servers
- External Hard Drives
- Lamp Based Video Displays
- Control Systems
For power management of other components, Furman recommends Classic, Prestige or Reference i Series Power Conditioners. For high-current components such as power amplifiers and powered subwoofers, solutions featuring Furman's exclusive Power Factor Technology are ideal.
Approximate Run Time, 1500VA *
Satellite Receiver or Cable Box = 80 Minutes
Media Server + Control System = 40 Minutes
Digital Mixing Console (24 Channel) = 20 minutes
DAW Computer + Digital I/O + External Hard Drive + 24” LCD Monitor = 12 Minutes
* These run times should be used as a guideline only and are dependant on device and usage.
Furman F1500-UPS E Features at a Glance
- 1500VA Battery Backup maintains critical data and allows orderly shutdown in.
